Product Information

Rolence Elitedent® Magnetostrictive System
Dual-frequency ultrasonic scaler
Accepts both 25Khz and 30Khz inserts

Magnetostrictive systems bring our customers gently ultrasonic , speeds steady with standards and more. We also keep up with the innovative and creative design concepts into the dentistry friendly with ease & convenience, by incorporating the dentist’s needs into the product design , and eventually to make our products user-friendly with easy convenience.

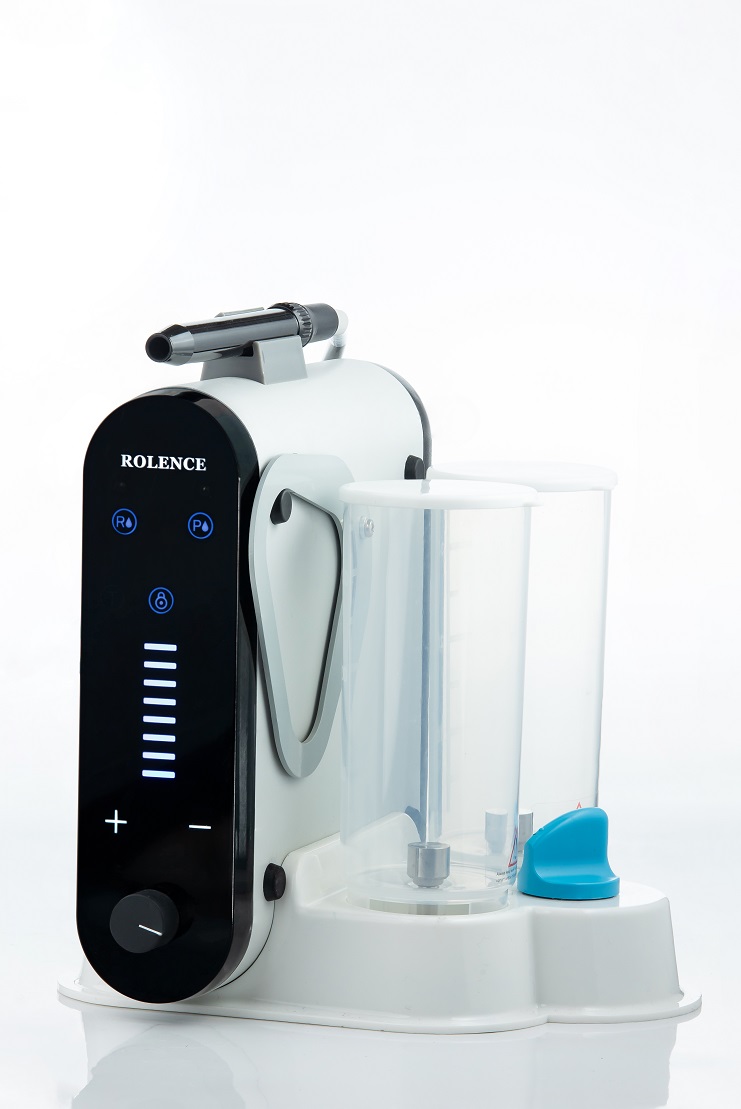

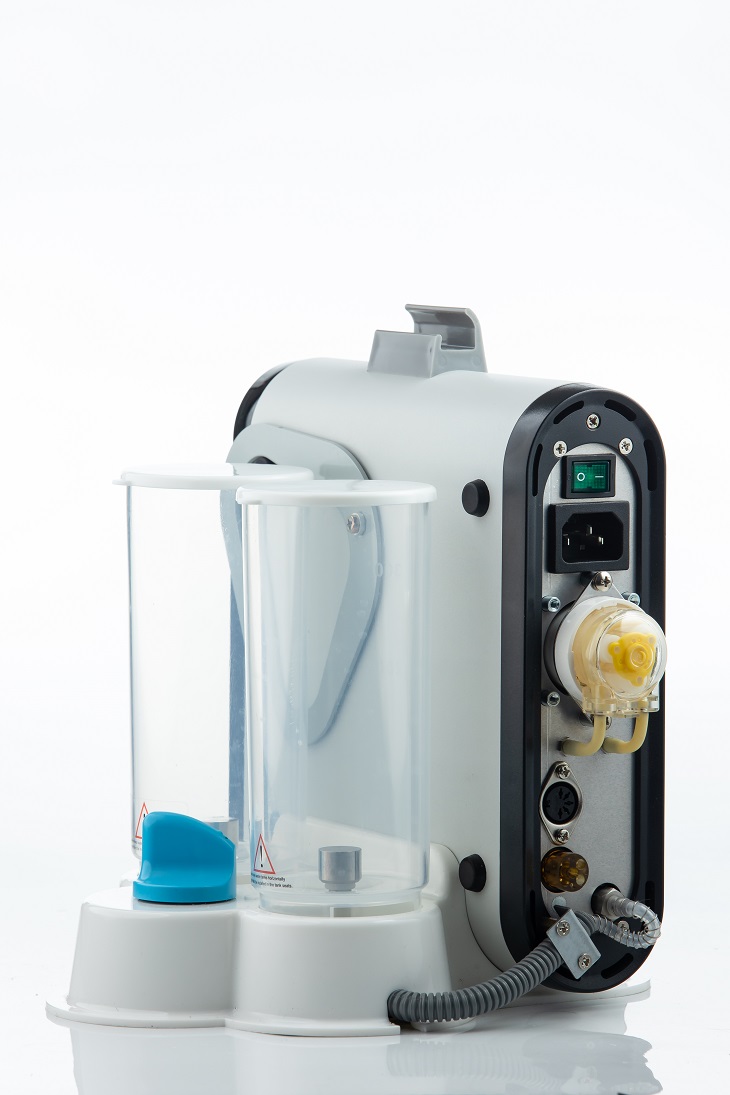

ELITEDENT MAGNETOSTRICTIVE_ MS-1 Elite

Brand new design with latest touch panel.

1. LIQUID CONTAINER : Maximum 500 ml in two self-contained medicament feeders.
2. DUAL FREQUENCY: Accenting 25K and 30K insert with auto-detecting, make user comfortable.
3. DETACHABLE HANDPIECE: Can be autoclaved in high temperature 135℃.
4. TURBO BOOST：Second position foot switch provides extra power to remove heavy calculu.
5. EXTERNAL FILTERS：Effectively block impurities in water, simple set up, filter can be disposable.
6. TOUCH PANEL : Rinse, Purge function & Handpiece connecting detection, Lock screen icon.

SPECIFICATION :
‧Dimension : 23 cm (H) x 22 cm (D) x 21.5 cm (W)
‧Frequency: 30Khz (+/-5%) ;
‧Power supply: 100~240V AC (Optional), 50/60HZ
‧Handpiece power vibration : 9~10W
‧Max wattage consumption: 40 W
.Water pressure：25~40 psi

1. Contraindications

• Pacemakers and Implantable Cardioverter-Defibrillators (ICDs): Strictly prohibited for use on patients or by operators with cardiac pacemakers, ICDs, or other active implantable medical devices. The strong magnetic fields generated by the internal stacks/coils may cause severe electromagnetic interference (EMI) and disrupt the function of the implant.

• Known Infectious Diseases: DO NOT use on patients diagnosed with active infectious diseases transmitted via aerosols or droplets (e.g., active tuberculosis, acute hepatitis B/C, HIV, etc.).

• Severe Respiratory Compromise: Prohibited for use on patients with severe Chronic Obstructive Pulmonary Disease (COPD), asthma, or dysphagia (difficulty swallowing) to prevent risk of asphyxiation caused by the heavy water spray and aerosols.

• Unstable Cardiovascular Conditions: DO NOT use on patients who have recently suffered a myocardial infarction (heart attack) or those with unstable angina pectoris.

2. Warnings

• Thermal Tissue Damage (Stack Overheating): NEVER operate the handpiece without adequate water/coolant flow. Magnetostrictive inserts rely heavily on water flow to cool both the internal metal stack and the scaling tip. Insufficient water will cause immediate overheating, leading to irreversible thermal damage to the dental pulp or oral soft tissues.

• Insert/Tip Breakage and Aspiration Risk: Inspect the insert and the metal stack before each use. Worn, bent, or dropped inserts may fracture or lose frequency adaptation during operation, posing a risk of aspiration. Use a manufacturer-approved insert wear guide regularly.

• Electromagnetic Safety: Do not use radio frequency (RF) communications equipment close to this device, as magnetostrictive units are highly sensitive to and can generate electromagnetic interference.

3. Precautions

• Clinical Technique (Elliptical Motion): Magnetostrictive tips vibrate in an elliptical motion, meaning all sides of the tip (point, concave, convex, and lateral sides) are active. NEVER apply the tip point directly at a 90-degree angle to the tooth. Use the lateral sides or the back of the insert, keeping the tip adapted to the tooth surface with a light, feather-touch pressure.

• Insert Care and Handling: Handle the metal strips (stack) with extreme care. Bending or scratching the stack will alter the resonance frequency and ruin the insert.

• Restorative Material Limitations: Avoid direct contact of the active tip with porcelain crowns, composite resins, or dental implants (unless using a specialized plastic-sleeved insert) to prevent surface alterations.

• Water Quality and Infection Control: Water supply must meet potable standards. Flush the waterlines for 2 to 3 minutes at the start of each day and between patients.
